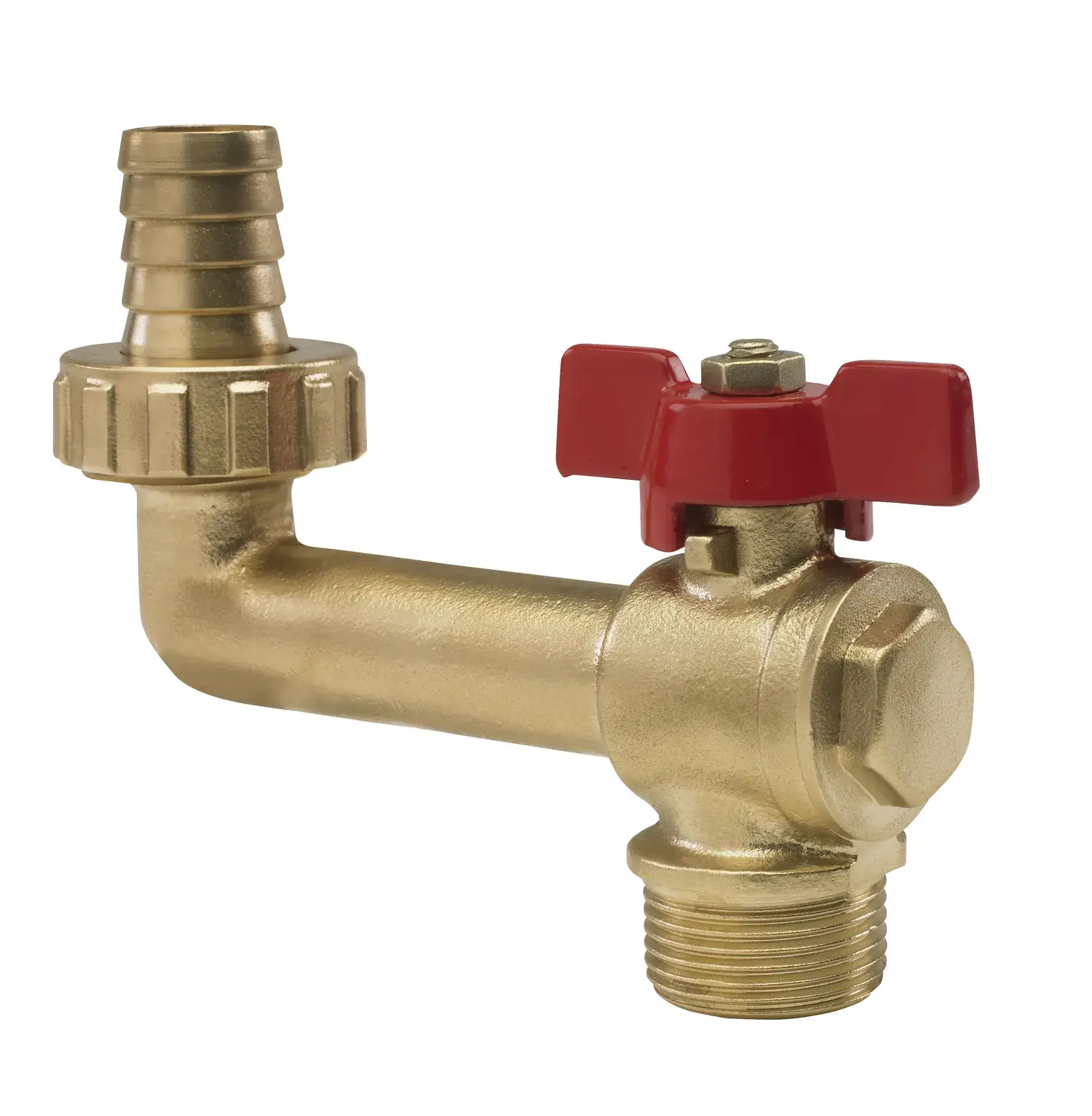

Vertical garden tap with red butterfly handle 1/2" M x 3/4" M, 15 mm hose nozzle RH420
The ARCO RH420 from the Garden range is a vertical garden tap with red butterfly handle. Quarter-turn ball tap with manual operation for garden installations, connected by a threaded end.
This version has a 1/2" M x 3/4" M, 15 mm hose nozzle connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 65 °C. The body is made of brass.
Features
- European brass in DW (4MS) quality for use in drinking water installations.
- 100% of the taps are tested for internal leakage.
- Gland nut system.
- Metal handle.
Application
Specially designed for outdoor garden installations where a vertical watering tap is required.
Ideal for water connections at ground level.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | RH420 |
| Brand | ARCO |
| Series | Garden |
| Connection | 1/2" M x 3/4" M, 15 mm hose nozzle (supplier notation: 1/2M-3/4M X 15) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 65 °C |
| Material nozzle | Brass CW617N, brass color |
| Material body | Brass CW617N, brass color |
| Material butterfly | ZAMAK, red |
| Material nut | Steel, Geomet® 500 |
| Material stem | Brass CW617N, brass color |
| Material o-rings | NBR |
| Material ball | Brass CW617N, chrome plated |
| Material seat | PTFE |
| Dimension A | 90 mm |
| Dimension B | 56 mm |
| Dimension C | 51 mm |
| Packaging | Per piece (inner box 16 pcs, outer box 16 pcs) |
| EAN code | 8428519037447 |
| Technical sheet | Download PDF |
