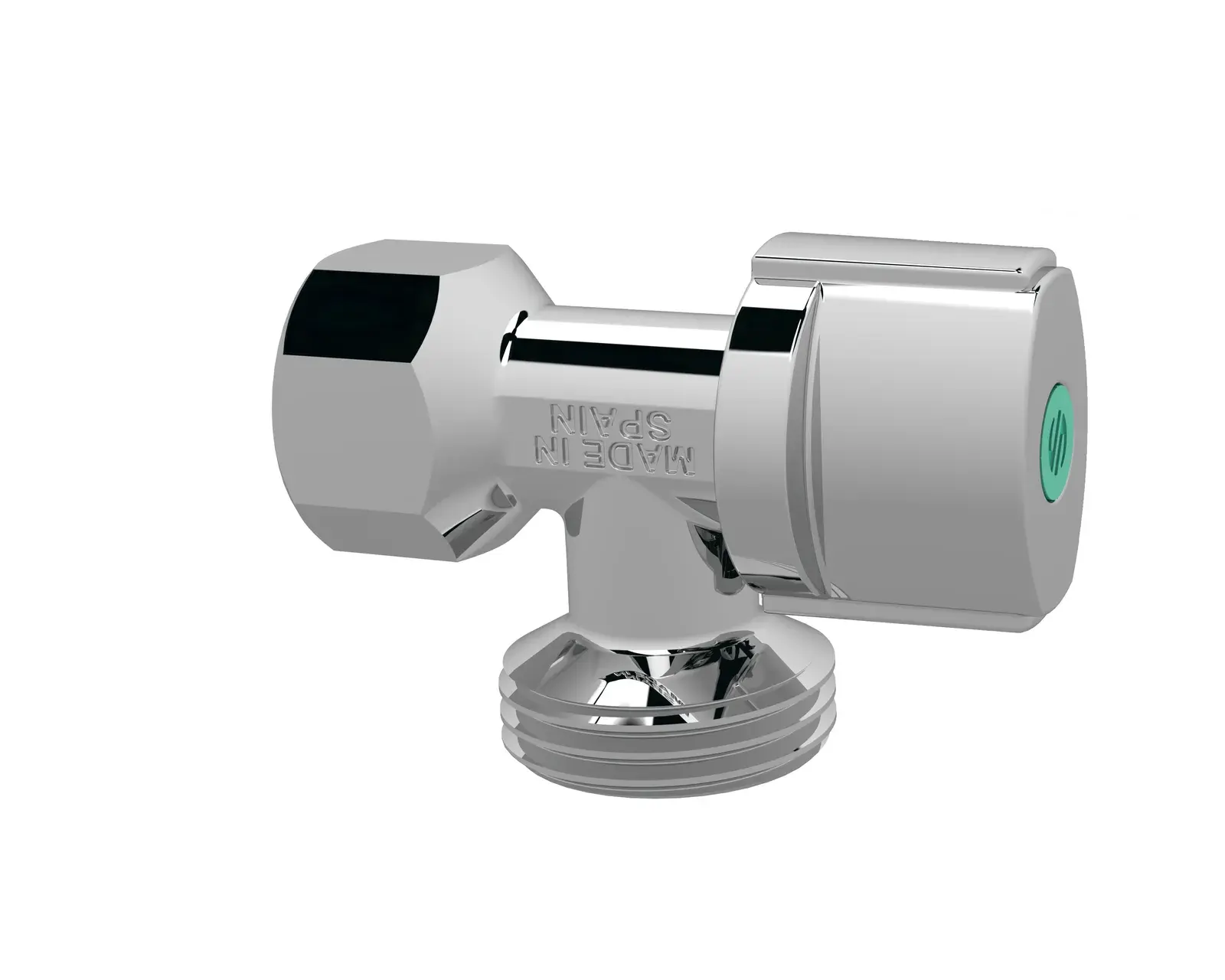

Washing machine valve L-94 1/2" F x 3/4" M NV728AC
The ARCO NV728AC from the L-94 range is a washing machine valve with a chrome-plated ABS Nova handle. WASHING MACHINE FEMALE is a quarter-turn angle ball valve for surface mounting with manual operation, where the connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" F x 3/4" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to washing machines and dishwashers.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | NV728AC |
| Brand | ARCO |
| Series | L-94 |
| Connection | 1/2" F x 3/4" M (supplier notation: 1/2F-3/4M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material seat | NBR |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Material o-rings | NBR |
| Material handle | ABS, chrome plated |
| Dimension A | 59 mm |
| Dimension B | 28 mm |
| Dimension C | 27 mm |
| Packaging | Individual (outer box 100 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| EAN code | 8428519080030 |
