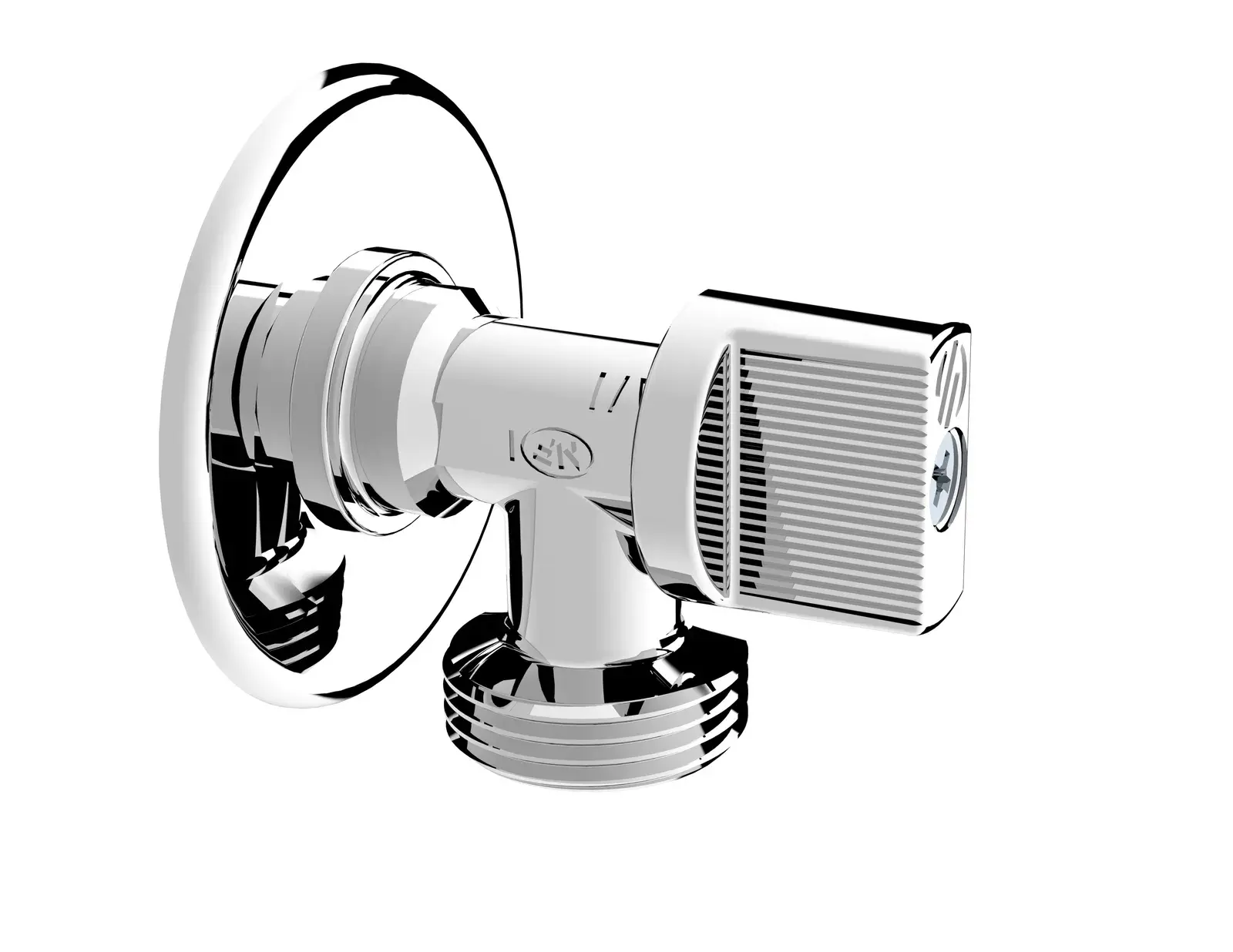

Washing machine valve L-94 Delta 1/2" M x 3/4" M DEF728PB
The ARCO DEF728PB from the L-94 Delta range is a washing machine valve with a chrome-plated ABS Original handle. Quarter-turn angle ball valves for surface mounting with manual operation, where the connection is made by threaded ends.
This version has a 1/2" M x 3/4" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to washing machines and dishwashers.
The L-94 is compact for tight spaces with front access to the handle.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | DEF728PB |
| Brand | ARCO |
| Series | L-94 Delta |
| Connection | 1/2" M x 3/4" M (supplier notation: 1/2M-3/4M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 62 mm |
| Dimension B | 31 mm |
| Dimension C | 38 mm |
| Packaging | Individual (outer box 35 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 105 |
| Certificate | Certificate of sanitary conformity (ACS) 26 ACC NY 039 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
