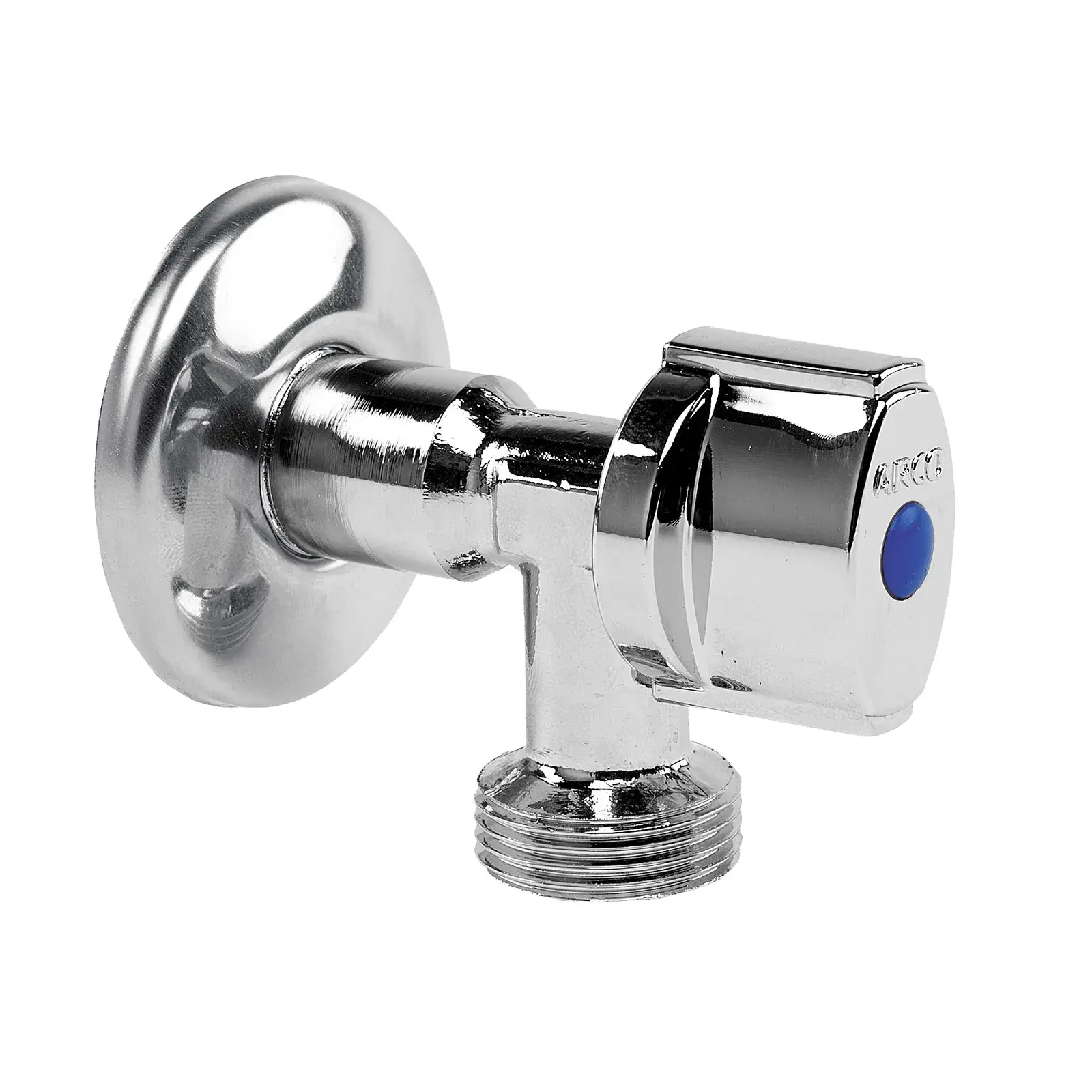

Washing machine valve with ABS Nova handle VITAQ L-85 1/2" M x 3/4" M AC728A01
The ARCO AC728A01 from the L-85 range is a washing machine valve with a chrome-plated ABS Nova handle. Quarter-turn angle ball valves for surface mounting with manual operation, where the connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" M x 3/4" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to washing machines and dishwashers.
The L-86 model is compact and vertically operated, allowing access to the handle from the top, for example when the washing machine connection is behind it.
The L-94 is compact for tight spaces with front access to the handle.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | AC728A01 |
| Brand | ARCO |
| Series | L-85 |
| Connection | 1/2" M x 3/4" M (supplier notation: 1/2M-3/4M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 79 mm |
| Dimension B | 45 mm |
| Dimension C | 33 mm |
| Packaging | Individual (outer box 13 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
