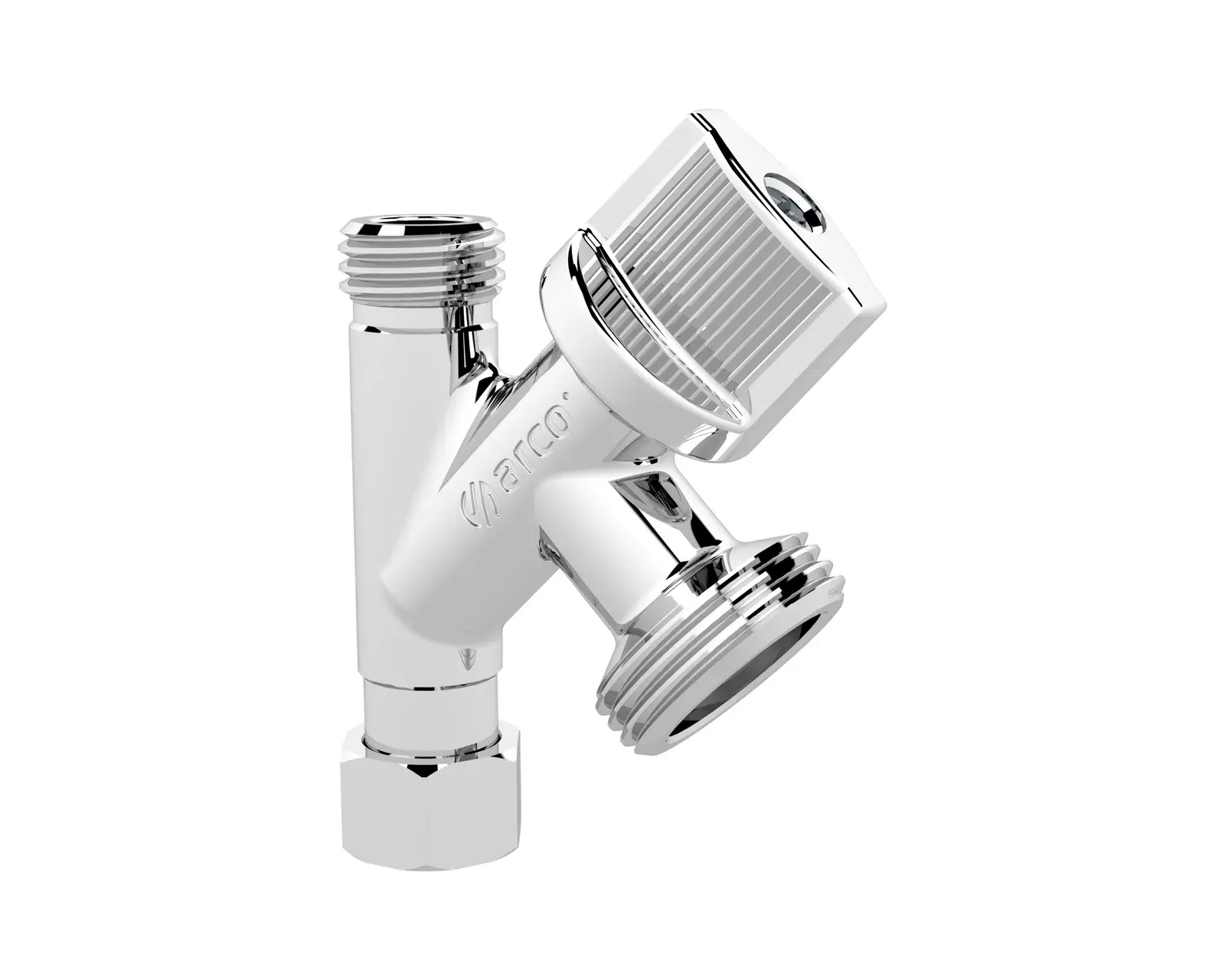

Washing machine valve with chrome ABS handle ConeKta 3/8" loose nut x 3/4" M x 3/8" M 28001003
The ARCO 28001003 from the ConeKta range is a washing machine valve with a chrome-plated ABS handle. CONEKTA is a quarter-turn angle ball valve for surface mounting with manual operation. It connects to any existing 3/8" or 1/2" end connection and quickly and easily provides an extra 3/4" outlet with independent shut-off. There is a specific model for connecting osmosis units. The VITAQ system increases the valve life span and flow comfort in hard water areas.
Add an extra outlet effortlessly.
This version has a 3/8" loose nut x 3/4" M x 3/8" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
- Special model 280025 for osmosis units.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to washing machines, dishwashers or reverse osmosis units.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 28001003 |
| Brand | ARCO |
| Series | ConeKta |
| Connection | 3/8" loose nut x 3/4" M x 3/8" M (supplier notation: 3/8LN-3/4M X 3/8M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 65 mm |
| Dimension B | 37 mm |
| Packaging | Individual (outer box 19 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
| Certificate | Water Supplies Certificate WSD 3321/2021 T/J (1518/2021) |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
