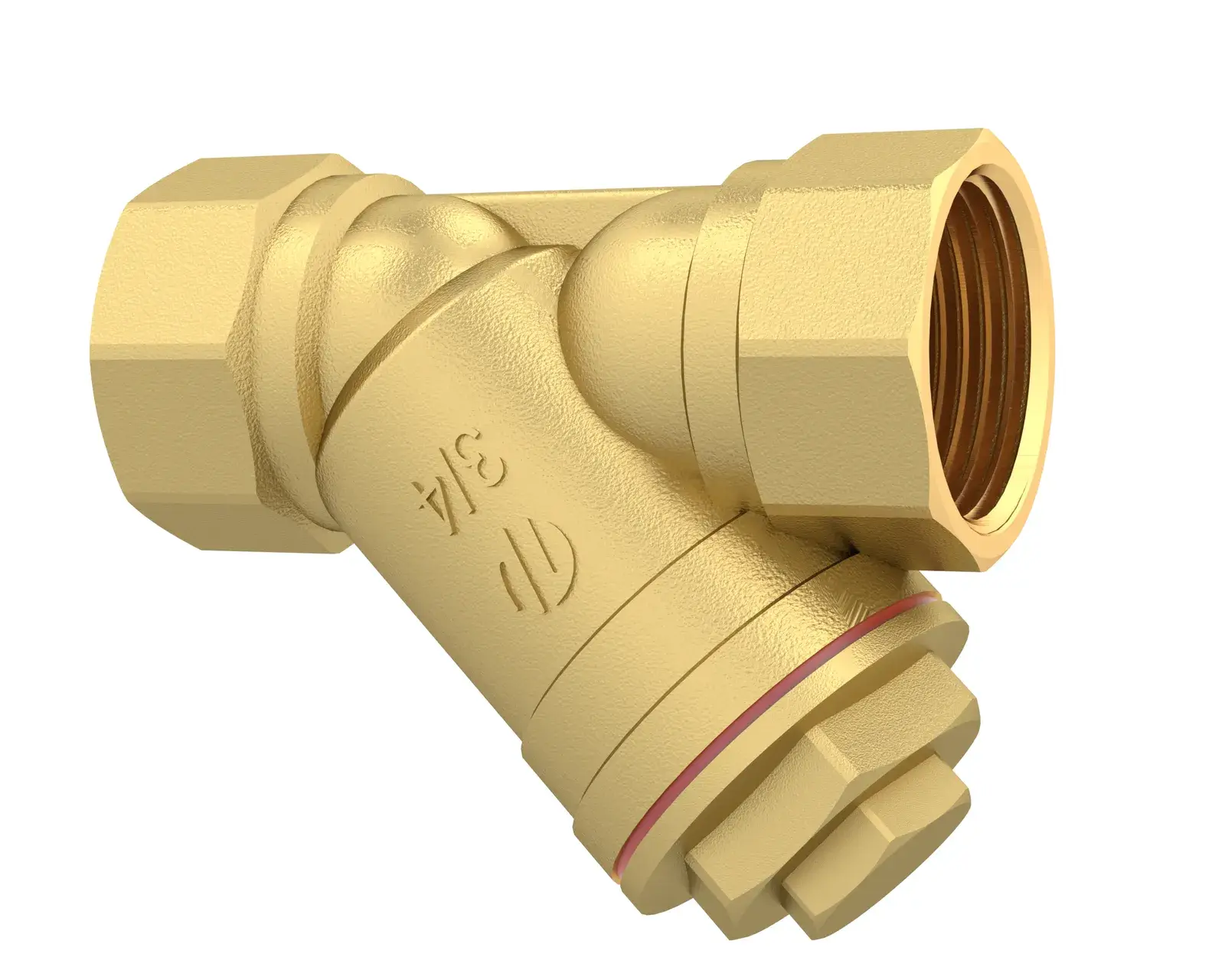

Y-type magnetic strainer Stop 3/4" F x 3/4" F 01851
The ARCO 01851 from the Stop range is a Y-type magnetic strainer. The Y Type magnetic strainer provides dual protection in heating, potable-water, and domestic hot-water systems, ensuring the effective retention of both ferrous and non-ferrous solid particles. The filter incorporates an N42-grade neodymium permanent magnet, which delivers a high magnetic capture capacity, together with a stainless-steel filter that acts as a mechanical barrier against impurities. The magnet is fully encapsulated within the one-piece service cap, manufactured without joints, preventing any direct contact between the water and the magnet and thereby increasing the safety and durability of the assembly. This service cap is made of European DW (4MS)-grade brass, approved for use in potable-water installations. Additionally, the filter includes a secondary cap providing access to the magnet, allowing its removal for replacement or maintenance, thus facilitating service operations in accordance with the instructions in this document.
This version has a 3/4" F x 3/4" F connection, a maximum working pressure of PN 20 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, brass color.
Features
- European brass, DW (4MS) certified, approved for use in potable-water applications.
- N42-grade neodymium permanent magnet.
- One-piece service cap with fully encapsulated magnet, preventing any direct contact between the water and the magnet.
- Magnet access cap for inspection and maintenance.
Application
- Heating installations
- Pumping groups.
- Drinking water distribution networks.
- Cold water and sanitary hot water plumbing installations.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 01851 |
| Brand | ARCO |
| Series | Stop |
| Connection | 3/4" F x 3/4" F (supplier notation: 3/4F-3/4F) |
| Max. pressure | PN 20 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, brass color |
| Material filter | Stainless steel |
| Material nut | Stainless steel |
| Material magnet | Neodymium |
| Material flat joint | Fiber |
| Material o-ring | NBR |
| Dimension A | 68 mm |
| Dimension B | 44 mm |
| Packaging | Supplier packaging: inner box 24 pcs, outer box 48 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
