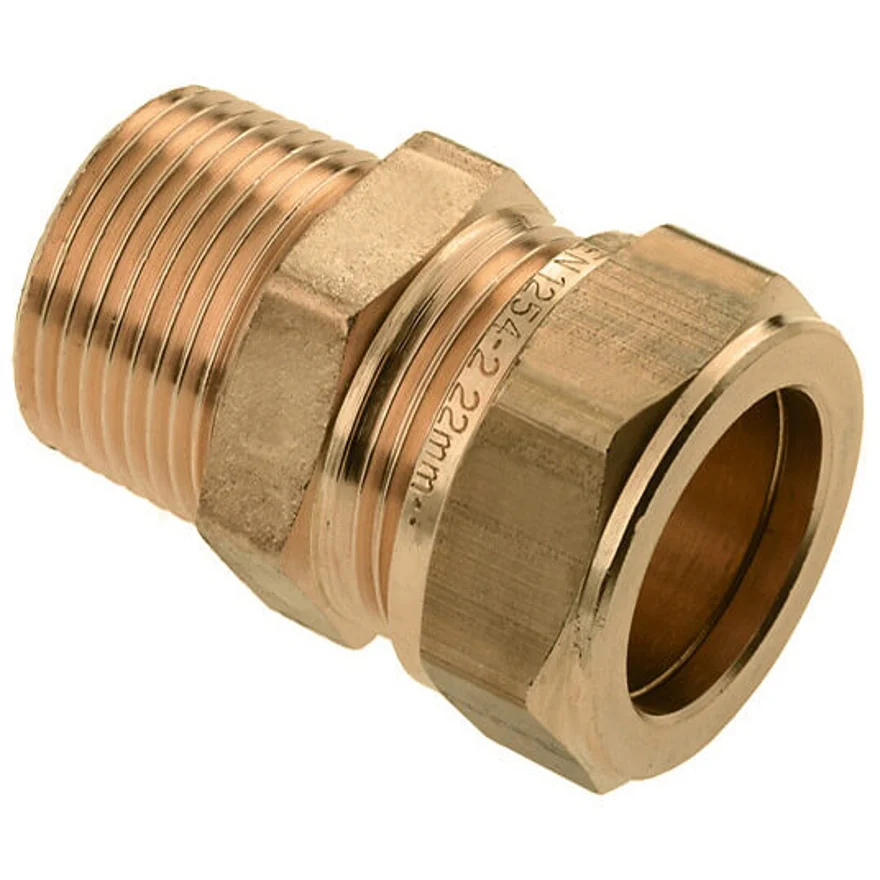

BONFIX brass compression fitting point piece 22 x 1 - 40051455
- End piece – transition from compression to external thread
- Brass – robust and durable design
- 22 mm – suitable for 22 mm copper and central heating pipes
- 1 inch – male thread connection for screw connections
- Assembly – no soldering or pressing required
- Secure – flattened key surface for better grip
- Inserting – the conical locating surface helps with smooth mounting
- KIWA and GASTEC certified – for reliable application
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
Key features
- End piece – transition from compression to external thread
- Brass – robust and durable design
- 22 mm – suitable for 22 mm copper and central heating pipes
- 1 inch – male thread connection for screw connections
- Assembly – no soldering or pressing required
- Secure – flattened key surface for better grip
- Inserting – the conical locating surface helps with smooth mounting
- KIWA and GASTEC certified – for reliable application
Product information
The BONFIX straight brass compression fitting 22 x 1 is a fitting that allows you to easily connect a 22 mm copper pipe to a 1-inch male thread connection. Ideal when you need to switch from a compression fitting to a threaded connection, for example towards fittings, valves, or other components with internal threads. Installation is quick using standard tools, and there is no need to solder or press.
Why BONFIX?
BONFIX compression fittings are known for their strong price-quality ratio and practical design. This is particularly evident in the flattened, sturdy wrench surface, providing better grip during installation, and the slightly conical locating surface in the union nut, which allows the pipe to grip more easily and slide in smoothly.
Additionally, this fitting is KIWA and GASTEC certified, so you can use it with confidence in installations where quality and standards matter.
Product features
| Property | Specification |
|---|---|
| Article number | 40051455 |
| GTIN number | 8717845211400 |
| Brand | BONFIX |
| Type | Point piece |
| Manufacturer's article number | 82744 |
| Mate | 22 x 1 |
| Model | Point piece |
| Application | Gas, drinking water, CV |
| Tightening torque | 30–180 Nm |
| Connection 1 | Conical external thread BSPT-R (ISO 7-1 / EN 10226-1) |
| Connection 2 | Compression ring |
| Main color fitting | Brass |
| Connection quality class 1 | CuZn40Pb2 (CW617N) |
| Connection quality class 2 | CuZn40Pb2 (CW617N) |
| Material connection 1 | Brass |
| Material connection 2 | Brass |
| Material sealing | Brass |
| Max. operating pressure at max. medium temperature | 16 bar |
| Max. working pressure at 20°C | 16 bar |
| Medium temperature (continuous) | -20 to 120 °C |
| Model | 1-piece |
| Nominal diameter connection 1 | 1" (25) |
| Nominal diameter connection 2 | DN 20 |
| Surface treatment connection 1 | Untreated |
| Surface treatment connection 2 | Untreated |
| Surface protection connection 1 | Untreated |
| Surface protection connection 2 | Untreated |
| Swivel wrench size | 32 mm |
| External pipe diameter connection 1 | 25 mm |
| External pipe diameter connection 2 | 22 mm |
| Form | Straight |
