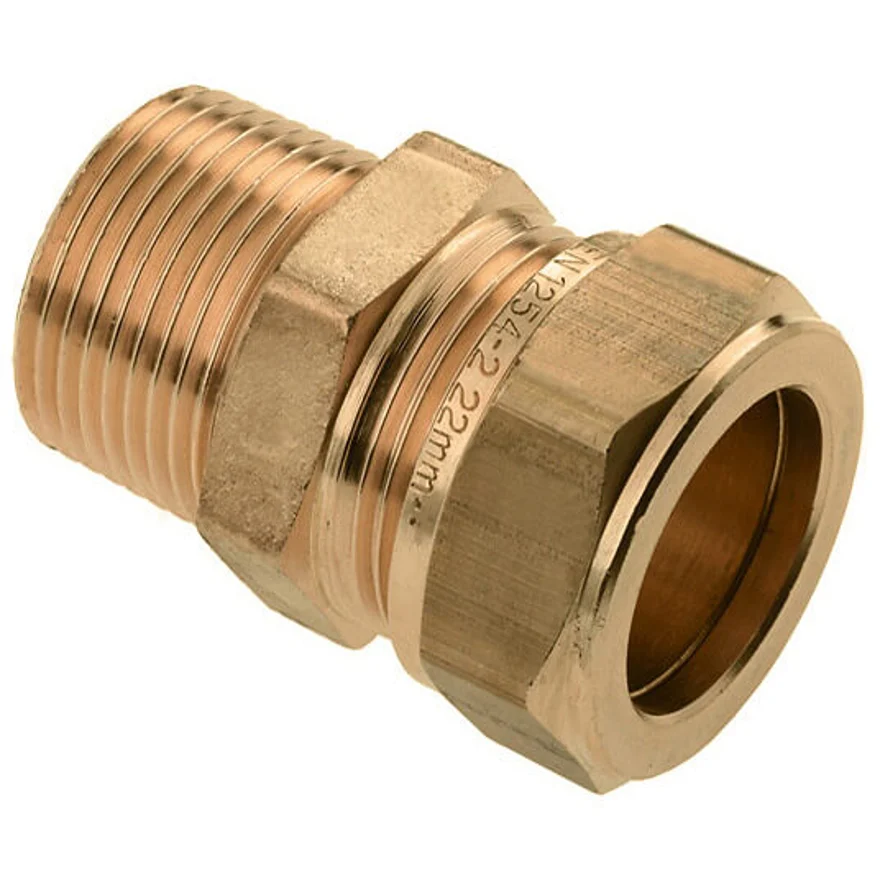

BONFIX brass compression fitting point piece 22 x 1/2 - 40051255
€ 10,22
(Incl. 21%)
€ 8,45
(Excl. 21%)
- Brass nozzle
- Connection size: external thread 1/2 x 22 mm
- Assembly: with standard tools
- GASTEC/KIWA approved
Loyalty Points
Earn from this purchase
+5
points
Max discount with points
5.11€
Using 512 points
Purchase this item to earn 5 points. As a loyalty member, you can use your points to save up to 5.11€ on this order!
Returns
14-day return policy
Secure Payment
Guarantee secure payments
24/7 Dedicated Support
Anywhere & anytime
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
Key features
- Brass nozzle
- Connection size: external thread 1/2 x 22 mm
- Assembly: with standard tools
- GASTEC/KIWA approved
Product information
BONFIX compression fittings offer excellent value for money. The design of the fittings is based on functionality and cost reduction. This translates into a flattened and sturdy wrenching surface for better grip during installation and a slightly conical locating surface in the union nut, allowing pipes to slide in easily and be connected.
Product features
| Property | Specification |
|---|---|
| Article number | 40051255 |
| GTIN number | 8717845211257 |
| Brand | BONFIX |
| Type | Point piece |
| Manufacturer's article number | 82529 |
| Mate | 22 x 1/2 |
| Model | Point piece |
| Application | Gas, drinking water, CV |
| Tightening torque | 30–180 Nm |
| Connection 1 | Conical external thread BSPT-R (ISO 7-1 / EN 10226-1) |
| Connection 2 | Compression ring |
| Main color fitting | Brass |
| Connection quality class 1 | CuZn40Pb2 (CW617N) |
| Connection quality class 2 | CuZn40Pb2 (CW617N) |
| Material connection 1 | Brass |
| Material connection 2 | Brass |
| Material sealing | Brass |
| Max. operating pressure at max. medium temperature | 16 bar |
| Max. working pressure at 20°C | 16 bar |
| Medium temperature (continuous) | -20 to 120 °C |
| Model | 1-piece |
| Nominal diameter connection 1 | 1/2" (15) |
| Nominal diameter connection 2 | DN 20 |
| Surface treatment connection 1 | Untreated |
| Surface treatment connection 2 | Untreated |
| Surface protection connection 1 | Untreated |
| Surface protection connection 2 | Untreated |
| Swivel wrench size | 32 mm |
| External pipe diameter connection 1 | 15 mm |
| External pipe diameter connection 2 | 22 mm |
| Form | Straight |
